A drawing before
the argument.

Clients do not argue about things they can see. This desk turns a brief into a dimensioned drawing and a picture of the object, and puts both in front of them while they are still deciding whether to take you seriously.

Start a conversationSee the whole crew
You go home. It doesn't.Every promise gets a row and a due dateAnswered the same day, not the next working dayA drawing before the quoteUnverifiable is never a passA desk per department, one address eachNothing is sent that a human cannot read backThe folder exists before you price itYou go home. It doesn't.Every promise gets a row and a due dateAnswered the same day, not the next working dayA drawing before the quoteUnverifiable is never a passA desk per department, one address eachNothing is sent that a human cannot read backThe folder exists before you price it
The case for it

Drawing & visualisation

The de-risking gate is a free render. Never a physical prototype.

The expensive way to reassure a nervous client is to build them a sample. It costs real material, real bench hours and a fortnight, and half the time it is thrown away.

The cheap way is to show them the thing. A visualisation with a known object in frame for scale answers most of what a prototype answers, arrives overnight instead of in a fortnight, and can be redrawn four times before anybody has touched a machine.

A text-to-CAD tool or an AI renderer can produce something that looks right in seconds, and that is not in dispute. What none of them do is tell you a joint won't close or a dimension won't fit — a tolerance stated rather than implied, a sheet size that exists rather than an assumed board length, a dimension chain that resolves to the datum instead of accumulating an error over a long run. None of that shows up in a rendered image. It shows up on the day someone tries to build from it, which is why the value here was never generating the drawing — it is a person checking it before you commit material to it.

The mechanism, drawn before anybody cut it
The mechanism, drawn before anybody cut it
The boardroom

“One model”

Rav Sandhu · Technical Director · 1:03

Why one model has to feed every sheet, so you are never priced from one drawing and built from another.

Captions on · the sound is worth it

What the desk does

Seven things, every day, without being asked

Take the whole desk or one line of it. Everything below is included in the department retainer. None of it is an extra.
01

Technical drawings from a specification

General arrangements, elevations, sections, setting-out and fabrication drawings, dimensioned and to a titleblock that is yours. From a written brief, a sketch on a napkin, or a survey.
02

The object, visualised

The thing they described, rendered, lit properly and always with something in frame for scale. A halo, a plinth, a signage run, a bar front — shown at the size it will be.
03

Options, drawn side by side

Three directions at most, one of them recommended, and the reasoning written next to them. A client given eight options chooses none of them and asks for a ninth.
04

Drawing and render review

Send something you or a tool already produced — a CAD export, an AI render, a supplier's drawing. We will tell you what's wrong with it before it is built from.
05

Cut lists and quantities that agree with the drawing

Because the drawing and the costing come out of the same model, the sheet the workshop gets cannot quietly disagree with the sheet the client was priced from.
06

Revisions overnight

A change to the model propagates to every drawing and every render that used it. A dimension is corrected once, not in eleven files.
07

Issued with the quote, not after it

Every priced proposal goes out with a visual. It is the single change that most reliably moves a quotation from ignored to answered.
Off the bench

Sheets that went to real clients

Four working drawings from live jobs, client and project redacted. Every dimension, note and tolerance on them is the one that was issued.

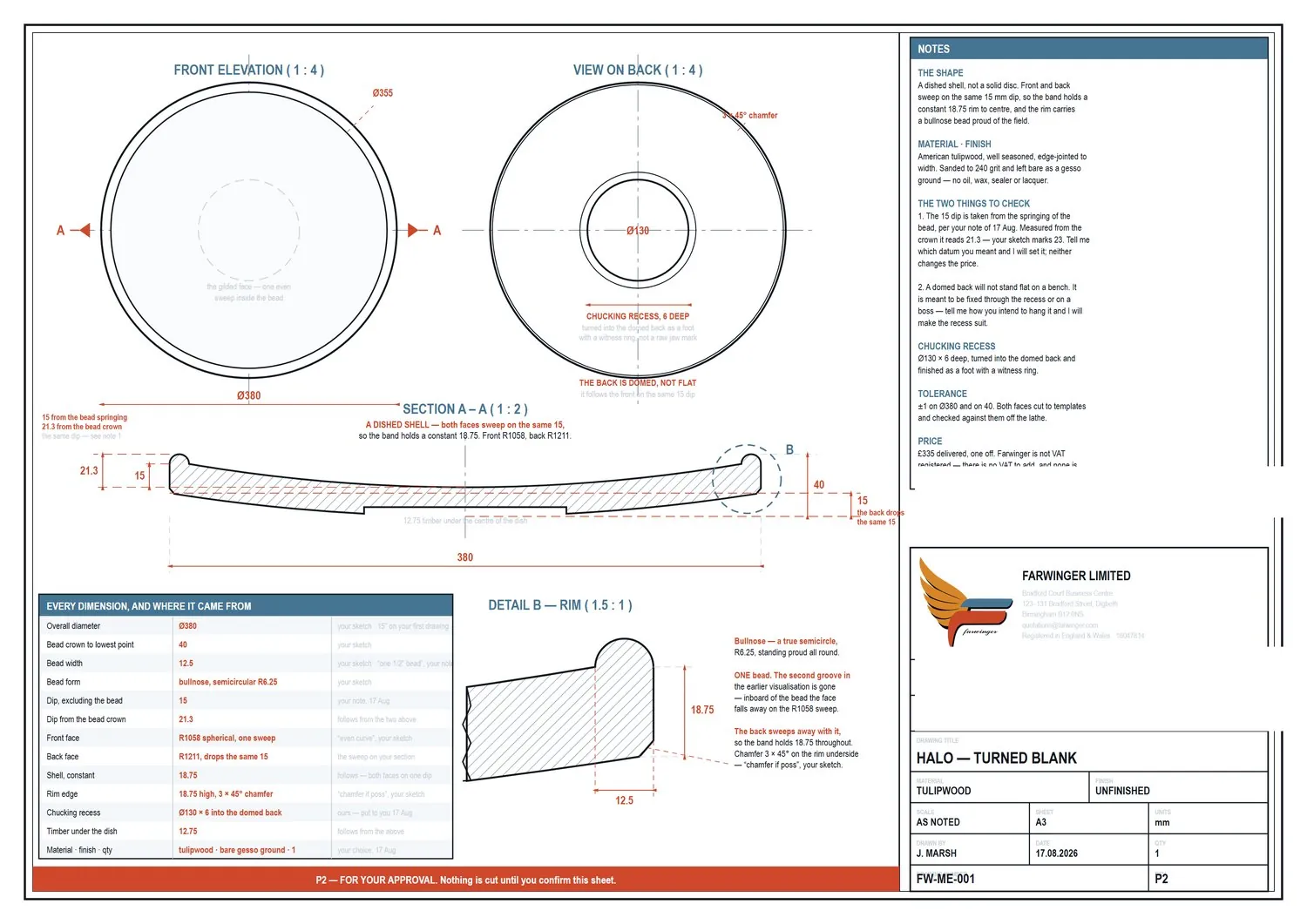

Every dimension, and where it came from

A dished tulipwood disc, Ø380. The table bottom-left maps every figure on the sheet back to the sentence or sketch it came from, so the client checks our reading of their brief rather than our arithmetic.

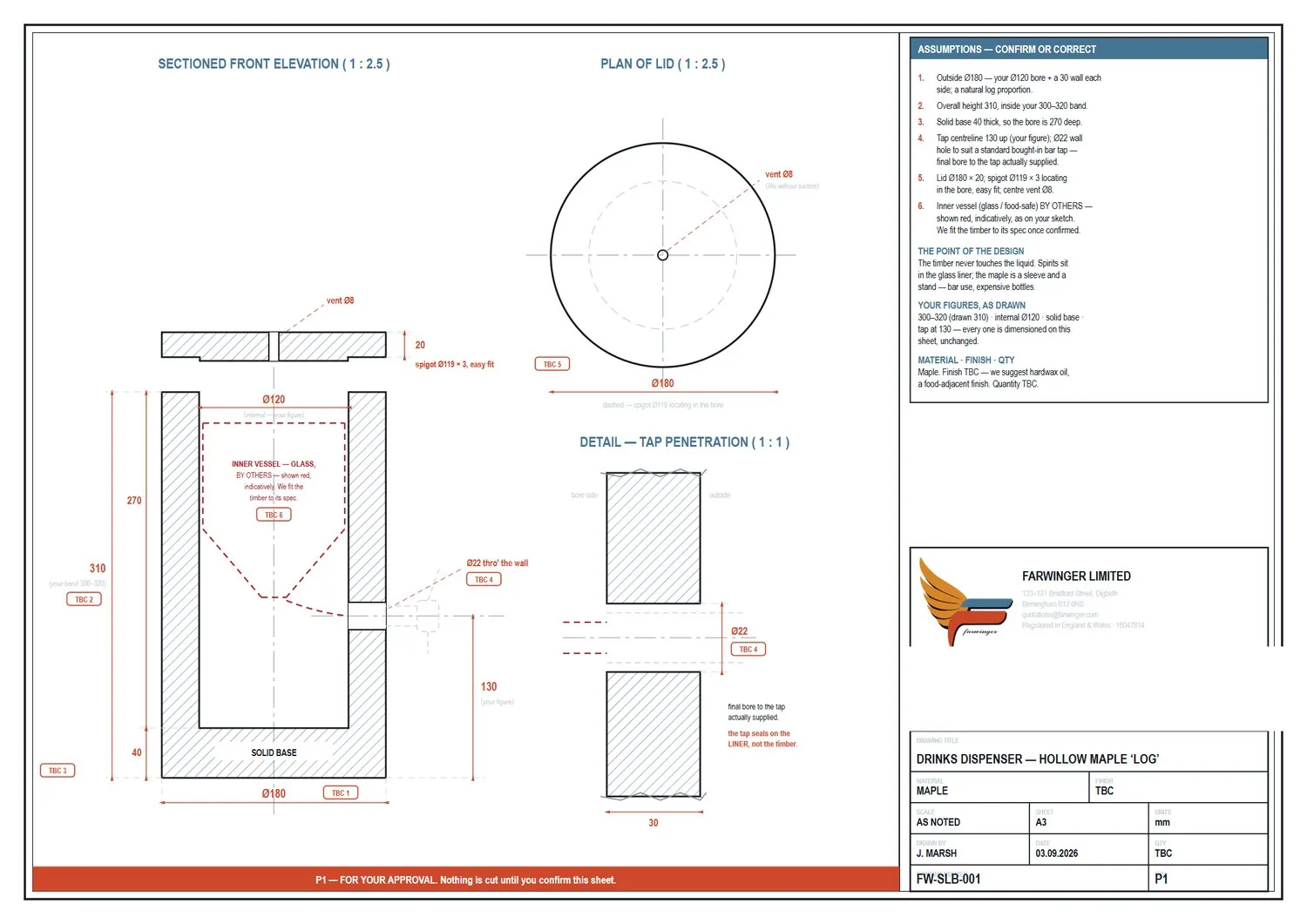

Assumptions, numbered, to confirm or correct

Drawn from a bar owner's hand sketch. Where the sketch was silent we made a decision, drew it, numbered it TBC and asked — six questions on one sheet instead of six emails over three days.

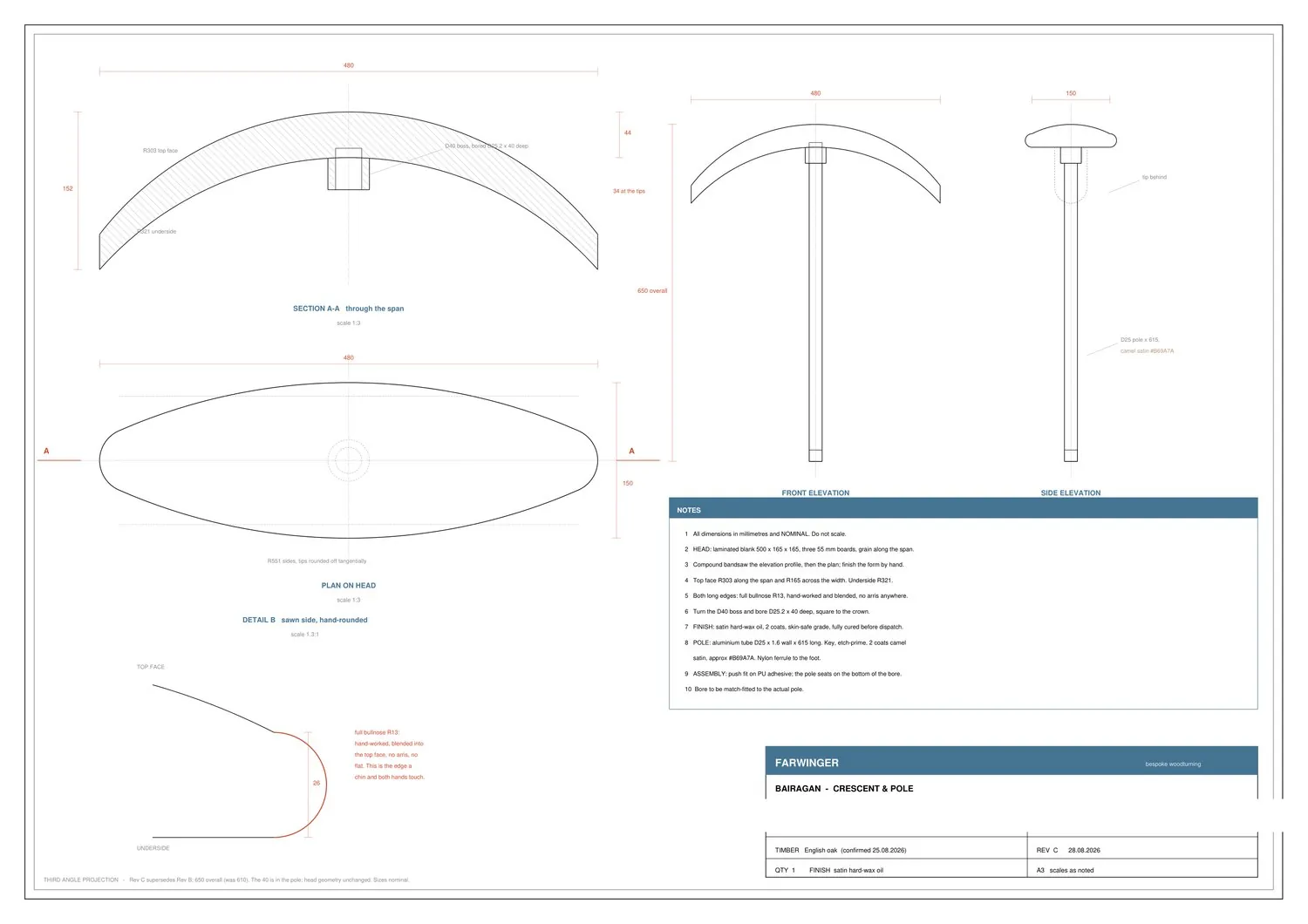

A one-off, drawn to rev C before any material was cut

A 480 mm hardwood crescent on a painted pole. Ten notes carry the things a dimension cannot: which edges are hand-blended, which bore is match-fitted to the part it receives, and where the finish has to be skin-safe.

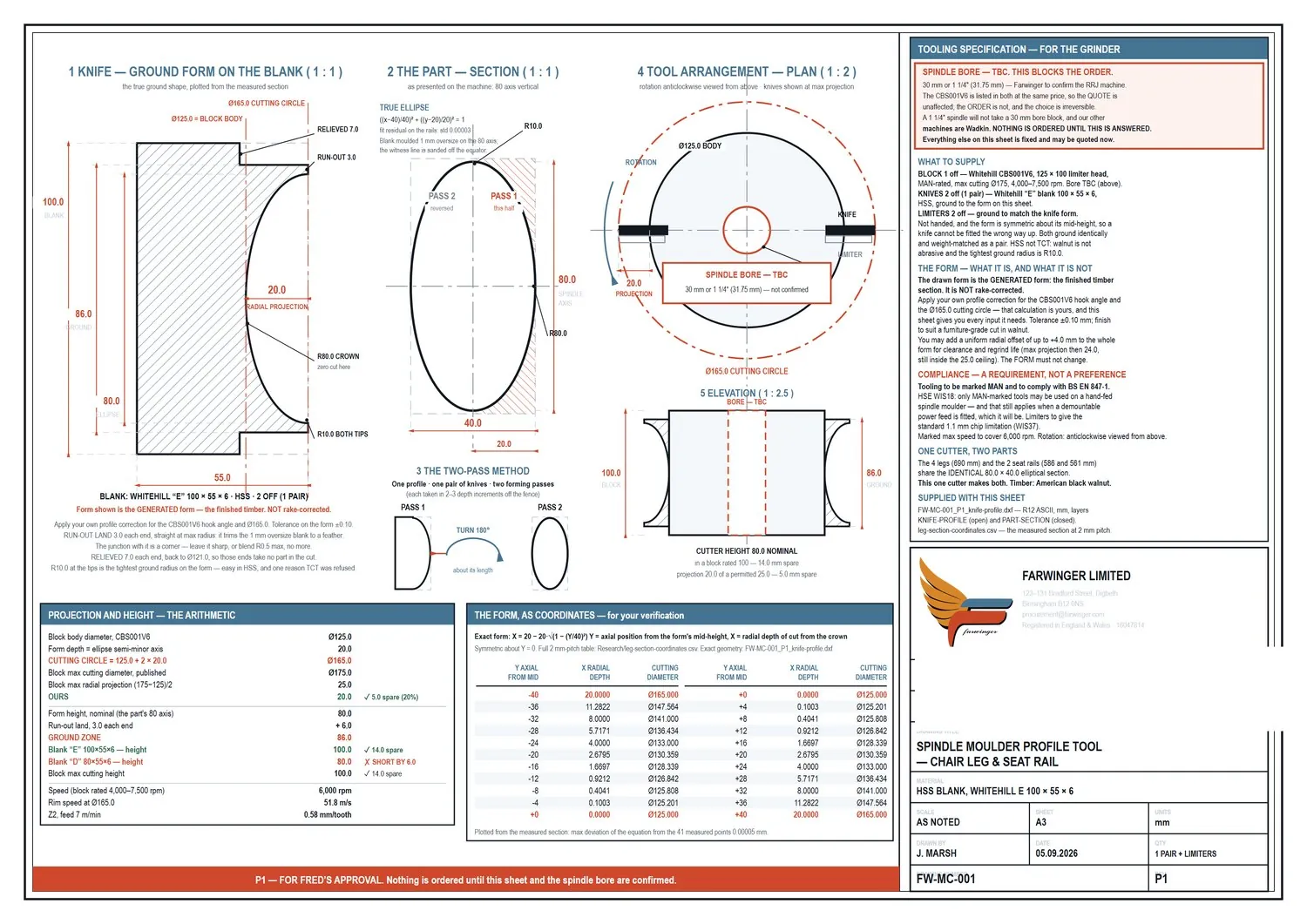

A tooling drawing, written for the grinder

Not a drawing of the part — a drawing of the cutter that makes the part, with the ground form on the blank, the tool arrangement in plan, and a coordinate table the toolmaker works from directly.

On the record

This desk, already at work

The real cases this desk has been through, the guide to its most-asked-for document, and anything you can try before you talk to anyone.
Case study

Reference photo to tested mechanism

A design that had to move correctly, not just look correct

Read the case
Depth

What this desk knows

Drawings that a fabricator can build from, not pictures of drawings.

The drawing set

  • General arrangements, plans, elevations, sections, setting-out and fabrication drawings — to your titleblock, your layers, your conventions.
  • Dimensions to datum, not chained, so an accumulated error does not arrive at the far end of a run.
  • Tolerances stated. A drawing without them is an argument waiting for a site visit.
  • Revision control that means something: what changed, why, and who has the old one.

Buildability

  • Sheet sizes, standard section sizes, and material widths that exist, so the cut list does not assume a 3.2 m board where the mill sells 3.0 m.
  • Fixings, substrate and back-framing shown — the parts a visual leaves out and the floor has to invent.
  • Access, weight and lifting considered at drawing stage, not at the door of the venue.

Visualisation

  • The object rendered as it will be, with something in frame for scale.
  • The de-risking gate is a free render, never a physical prototype. A visualisation answers most of what a sample answers, arrives overnight instead of in a fortnight, and can be redrawn four times before anyone touches a machine.
  • Always disclosed as a visualisation. Never presented as a photograph.

One model

  • Drawings, cut lists, quantities and the costing come out of the same model, so the sheet the workshop gets cannot quietly disagree with the sheet the client was priced from.
  • A dimension is corrected once and propagates. Not in eleven files, by hand, at night.

Where a structure, a load path or a regulated element needs a qualified engineer's stamp, this desk prepares the information and an engineer signs it. That line is real.

The run of it

How a job moves through

  1. The brief arrives

    A spec, a sketch, a photograph, or four sentences in an email.

  2. It is modelled

    Dimensions, materials and tolerances made explicit — including the ones nobody stated.

  3. Drawings come out

    GA, sections, setting-out, fabrication. One model, so they agree.

  4. The render is lit

    The object, at its real size, with a scale reference in frame.

  5. You mark it up

    One pass, on the drawing, in your own hand if you like.

  6. It is reissued

    Corrected everywhere the dimension appears, same night.

The limits

What this desk will not do

Every department has a written boundary. A service that claims no limits has simply not found its own yet, and you will find it for them.

Where this desk stops

  • It is not a signed-off engineering calculation. Where a structure, a load path or a regulated element needs a qualified engineer's stamp, this desk prepares the information and an engineer signs it.
  • It does not send drawings to a supplier who has not signed a confidentiality agreement. Dimensions, quantity and finish can go out uncovered so a request for a price is never blocked. Pictures cannot.
  • It does not present a render as a photograph. Ever, and in writing.
Questions

Asked before, answered here

Why not just use an AI drafting or rendering tool myself?
You can, for a first pass, and plenty of people do. What those tools don't do is tell you a joint won't close or a dimension won't fit — they generate an image or a model that looks right. This desk's job is the checking step: a person confirms the geometry before you commit material to it.
What formats do we get?
PDF and DWG/DXF as standard, and the native model where it is useful. Your titleblock, your layer conventions, your standards.
Can it work from a photograph and a rough size?
Yes, and it will list what it had to assume. The assumptions are on the drawing rather than in someone's head.
Is the render honest about being a render?
Always. It is described as a visualisation wherever it appears, including in the file's own metadata.
Will it replace our drawing office?
No. It removes the queue in front of it. The work that needs judgement still needs your people; the work that needs somebody to sit down for four hours does not.
Next department

Demand & marketing

Then making sure the right people see it.

Open Demand

Which quote went out last month without a picture?

Tell us, and we will say whether this desk fits. A no is quicker for both of us. This desk on its own is from £1,450 a month, thirty days' notice either way, and the first month is a paid trial.
